Other accessories
Product Description
The light housing is precision-crafted from hard-anodized aluminum and paired with a dedicated acrylic optical lens, achieving a rugged pressure rating of up to 500 meters depth. This durable construction ensures reliable, long-duration deployment in the harshest marine environments.
Designed for versatility, it supports PWM dimming, plug-and-play operation, and daisy-chain connectivity, allowing for seamless integration into complex multi-light systems or standalone applications.
Key Features
-
High-Intensity Illumination
Delivers a powerful 1,500+ lumen output with wide-angle coverage, providing clear, uniform, and flicker-free lighting for subsea imaging and inspection. -
Adjustable Brightness, Simple Operation
Supports signal-based dimming for precise light control or direct on/off operation. Quick deployment is guaranteed with no complex configuration required. -
Multi-Light Daisy Chain Support
Connect multiple units in series using a single power and control line—minimizing wiring complexity and saving valuable space on your vehicle. -
Safe and Reliable (Thermal Protection)
Features built-in thermal sensors that automatically reduce output if the light is operated in air, preventing overheating and ensuring a long component lifespan. -
Built for Harsh Environments
The corrosion-resistant metal housing and 500m depth rating provide the reliability required for demanding commercial and scientific missions. -
Easy Installation
Equipped with pre-drilled mounting holes for fast and secure integration onto any underwater platform or frame.
| Parameter | Value | |
|
Electrical |
Supply Voltage (Vin) | 7–48 V |
| Full Brightness Supply Voltage (Vin) | 10–48 V | |
| PWM Logic Voltage | 3–48 V | |
| Peak Current | (15/Vin) A | |
|
Light |
Maximum Brightness | 1,500 lumens |
| Color Temperature | 5,700 K | |
| Beam Angle | 135° in water | |
|

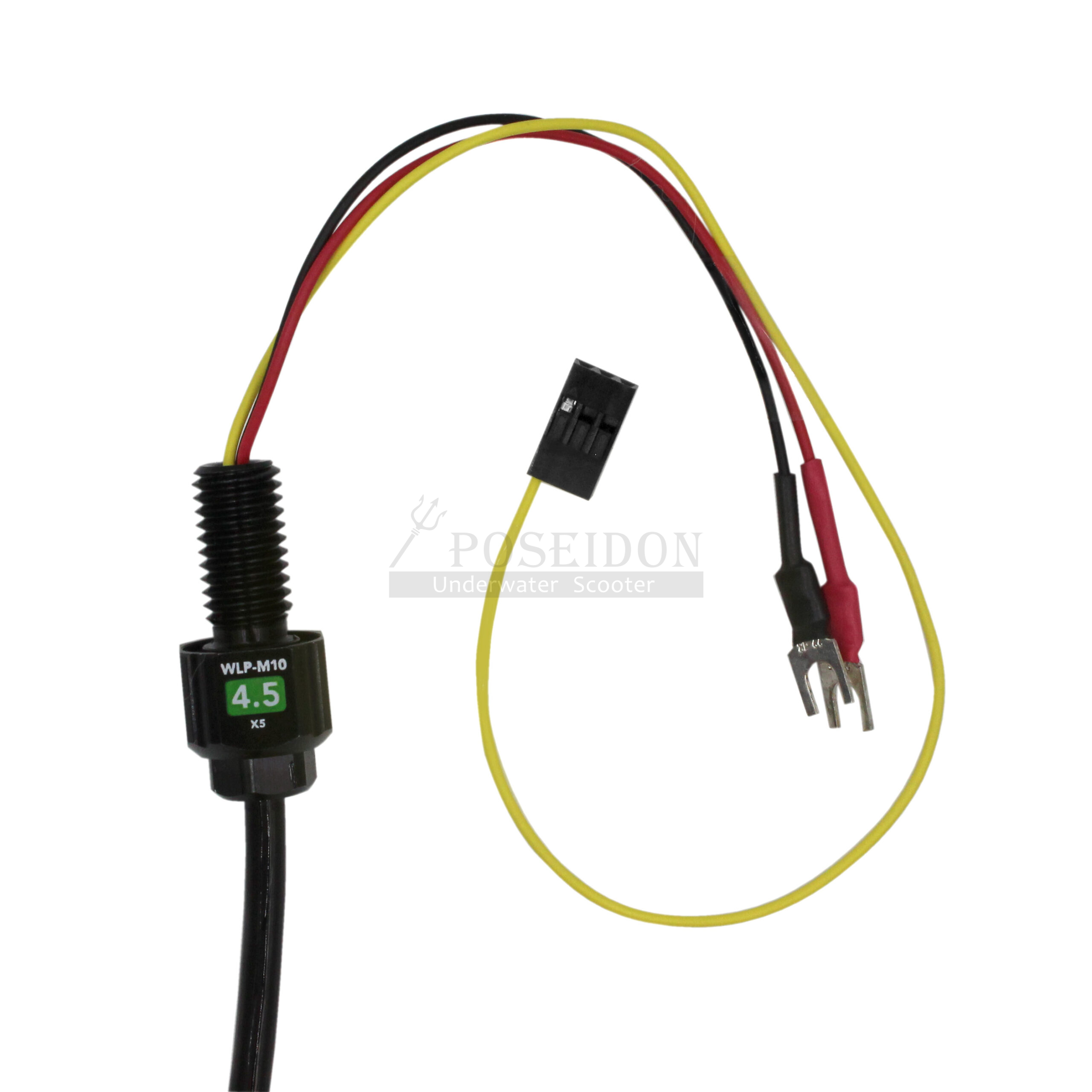

Cable |
Cable Length | 0.7 m / 27.5 in |
| Conductor Gauge | 22 AWG | |
|
Wires |
Black - Ground | |
| Red - Power | ||
| Yellow - Signal | ||
|
Installed Penetrators |
Device Side | M06-4.5mm-LC |
| Cable End | M10-4.5mm-LC | |
|
Physical |
Pressure Rating | 500 m / 1640 ft |
| Overall Length | 78.4 mm / 3.09 in | |
| Overall Diameter | 37 mm / 1.46 in | |
| Bracket Mounting Hole Spacing | 19 mm / 0.75 in | |
| Bracket Screw Size | M3 | |
| Weight in Air (per light) | 118 g / 4.16 oz | |
| Weight in Water (per light) | 50 g / 1.76 oz | |
| Maximum Temperature when Run in Air | 55 °C / 130 °F | |
|
Internals |
Face-Seal O-Ring | AS568-019 Buna-N 70A |
| Radial Seal O-Ring | AS568-021 Buna-N 70A | |
|
Insertion Tool for Insulation Displacement Connectors |
Kyocera AVX - 067000773001000 - Hand Tool (Digi-Key) | |
| Kyocera AVX - 069176701602000 - Tool Bit (Digi-Key) |
