Product Description

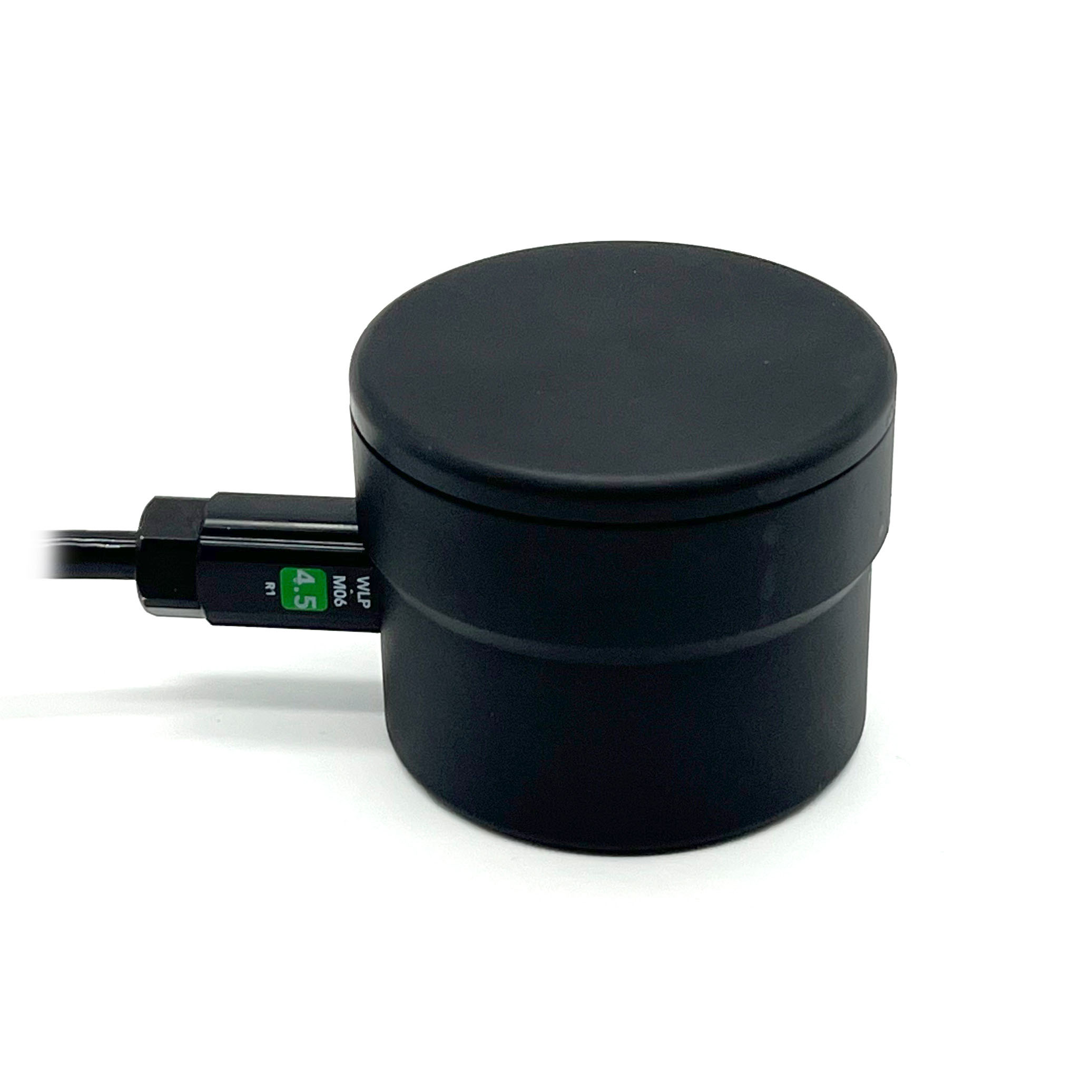

This is the updated version of our Ping sonar, the Ping2! It’s very similar to the original Ping but has an increased range to 100 meters and an improved physical design!
The Ping sonar is a multipurpose single-beam echosounder. It can be used as an altimeter for ROVs and AUVs, for bathymetry work aboard a USV, as an obstacle avoidance sonar, and other underwater distance measurement applications. Ping2 combines a compact form factor and 300 meter depth rating with an open-source user interface and Arduino, C++, and Python development libraries to create a powerful new tool for marine robotics!
An echosounder, like the Ping, is one of the simplest forms of underwater sonar. It operates by using a piezoelectric transducer to send an ultrasonic acoustic pulse into the water and then listens back for echoes to return. With that information, it’s able to determine the distance to the strongest echo, which is usually the ocean floor or a large object. It can also provide the full echo response (echo strength versus time) which can be plotted like the display of a fishfinder sonar.
The Ping uses a 115 kHz transducer frequency, away from those used on most boat echosounders to avoid interference. It has a measurement range of 100 meters (328 feet) and a measurement beamwidth of 25 degrees, perfect for applications on a rocking boat or for obstacle avoidance. An advanced bottom-tracking algorithm runs on the device to determine the distance to the seafloor, even in complicated situations with multiple echoes.
Use the Ping-Viewer interface to view and record Ping data.

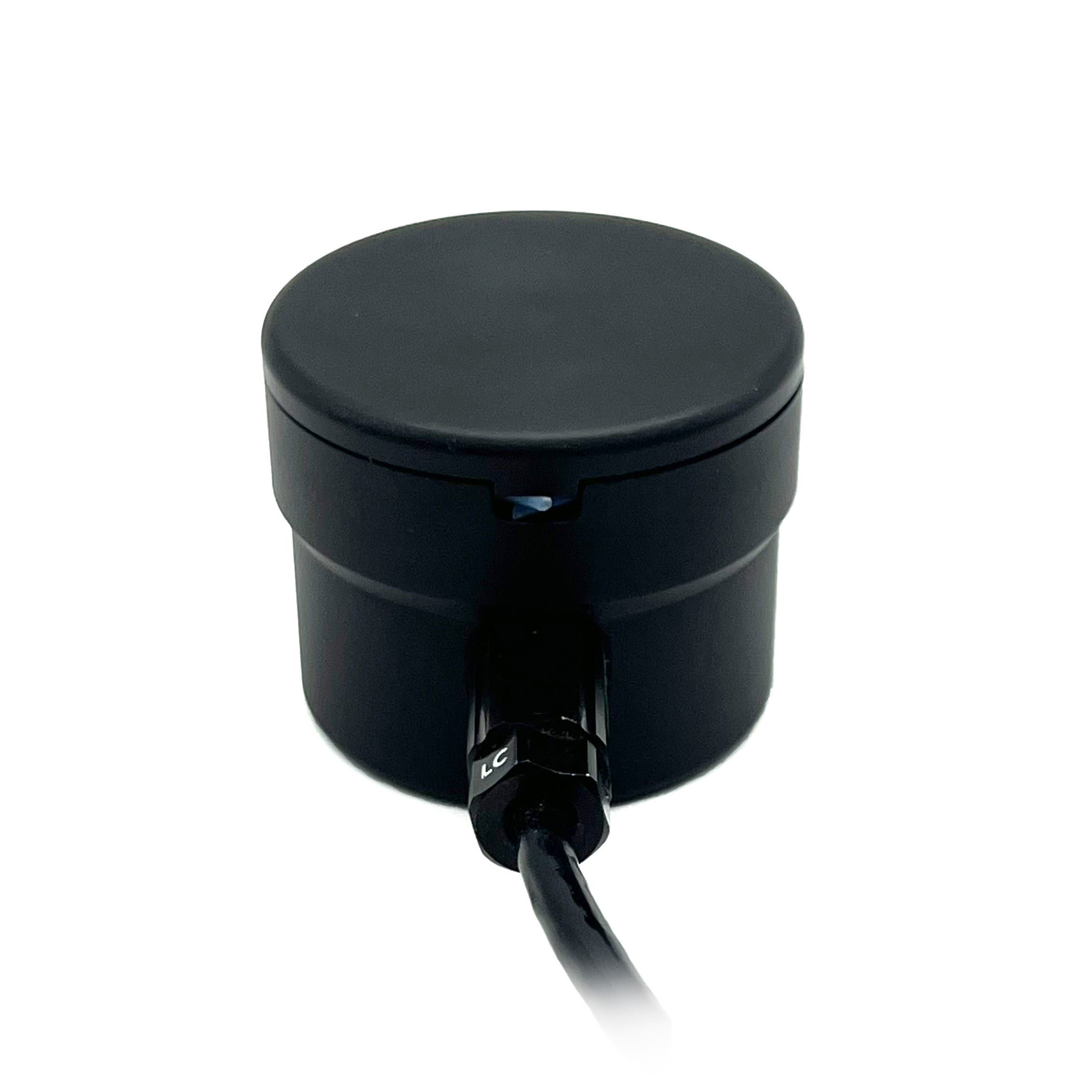

The updated Ping2 is housed in a rugged hard-anodized aluminum enclosure with a 1 meter (3.3 feet) cable with a pre-installed WetLink Penetrator. It has four threaded mounting holes on the back and comes with a mounting bracket and hardware to make it easy to mount on the ROV. The included header pin to JST-GH adapter makes it easy to plug into the USB to Serial and RS485 Adapter.
The Ping can be connected to a microcontroller device, such as an Arduino, or to a computer through a BLUART USB to Serial adapter.
Once connected, we recommend getting started with Ping Viewer, an open-source application developed specifically for Ping devices. Ping-Viewer runs on Windows, Mac, and Linux and makes it easy to view the output, record data, and change settings on the Ping. The Ping sonar can be connected to Ping Viewer directly or over a network connection routed through BlueOS, so that you can use the Ping2 on the ROV without using any additional wires in the tether.
| Parameter | Value | |
|---|---|---|
| Electrical | ||
| Supply Voltage | 4.5–5.5 V | |
| Logic Level Voltage | 3.3 V (5 V tolerant) | |
| Current Draw | 100 mA (typical) 900 mA (peak) |
|
| Communication | ||
| Signal Protocol | TTL Serial (UART) | |
| Available Firmware Baud Rates | 115200 bps (default) 9600 bps |
|
| Message Protocol | Ping Protocol | |
| Message Subsets | common, ping1d | |
| Software Development Libraries | Arduino ArduPilot (limited) C++ Python Rust |
|
| Cable | ||
| Cable Used | BR-100452 | |
| Cable Length | 875 mm | 34.5 in |
| Maximum Cable Length | 8 m | 26 ft |
| Conductor Gauge | 24 AWG | |
| Wires | Black Red White Green |
Ground Vin TX (out) RX (in) |
| Installed Penetrators | ||
| Device Side | WLP-M06-4.5MM-LC | |
| Cable End | WLP-M10-4.5MM-LC | |
| Acoustics | ||
| Frequency | 115 kHz | |
| Source Level | 198 dB re 1 uPa @ 1 m | |
| Beamwidth (-3 dB from peak) | 25 degrees | |
| Typical Minimum Range | 0.3 m | 1 ft |
| Typical Usable Range¹ | 100 m | 328 ft |
| Range Resolution | 0.5% of range | |
| Range Resolution at 100 m (waterfall range, not measured range) | 50 cm | 19.7 in |
| Range Resolution at 2 m (waterfall range, not measured range) | 1 cm | 0.4 in |
| Physical | ||
| Depth Rating | 300 m | 984 ft |
| Temperature Range | 0–30°C | 32–86°F |
| Weight in Air (w/ cable) | 187 g | 0.41 lb |
| Weight in Water (w/ cable) | 100 g | 0.22 lb |
| Mounting Bracket Screw Size | M5x16 mm | |
| Internals | ||
| Air Chamber O-Ring | AS568-030, Buna-N, 70A | |
| ¹ Usable range depends on operating conditions (e.g. performance may suffer over variable density changes from tall vegetation, groups of fish, geysers, etc). | ||
